Parameter
Aerial module dimensions: 130mm*100mm*100mm
Weight: 460g
Output power: 3KW

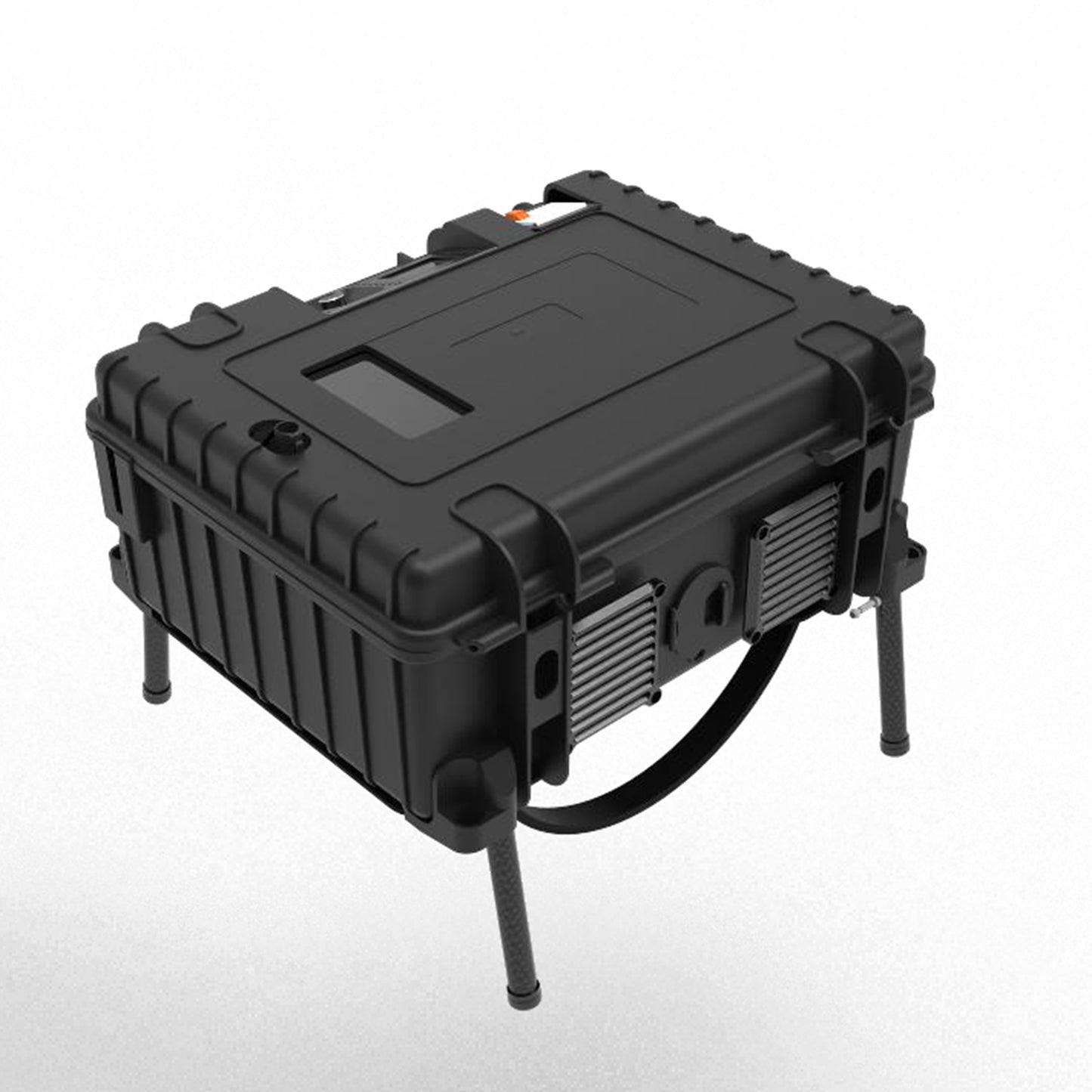

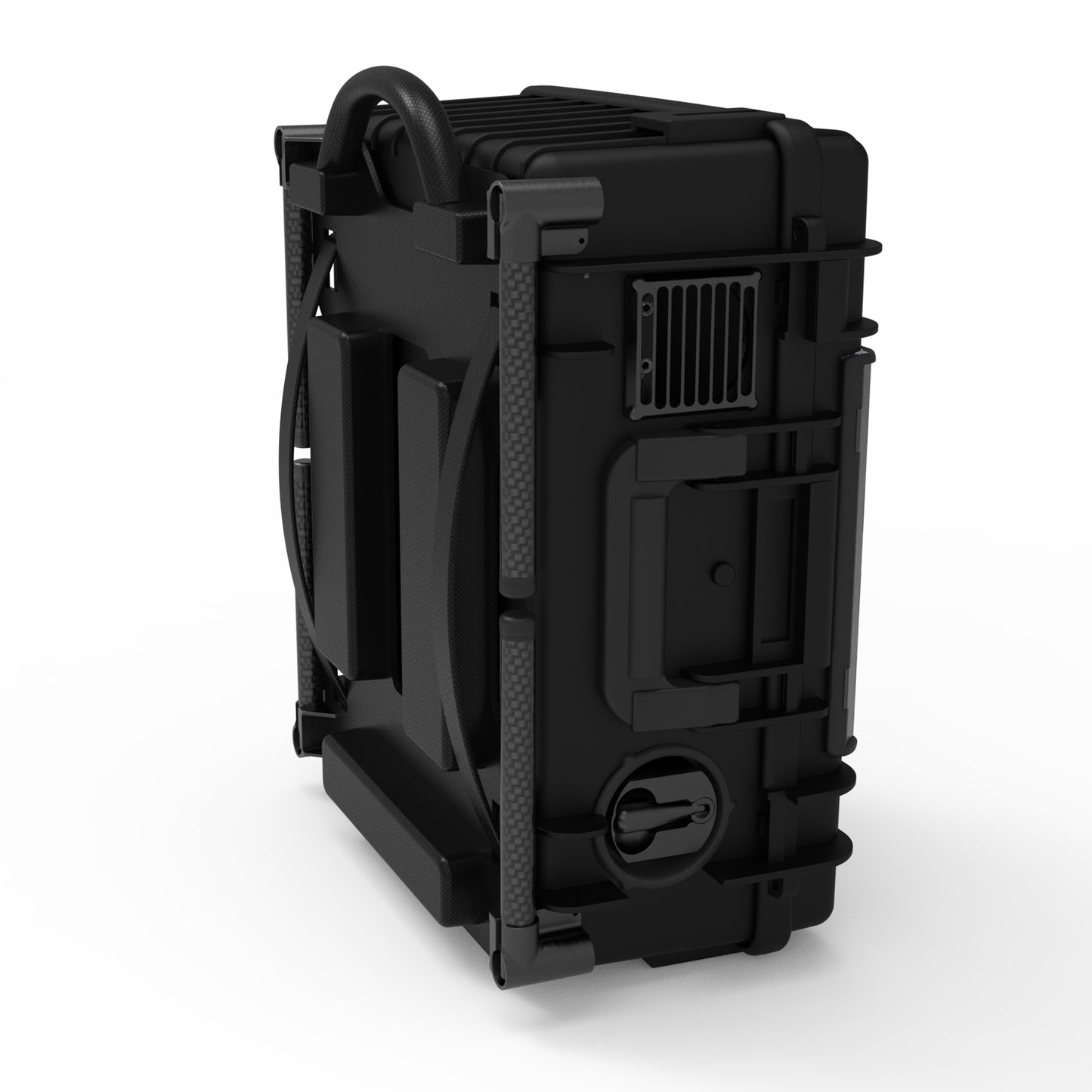

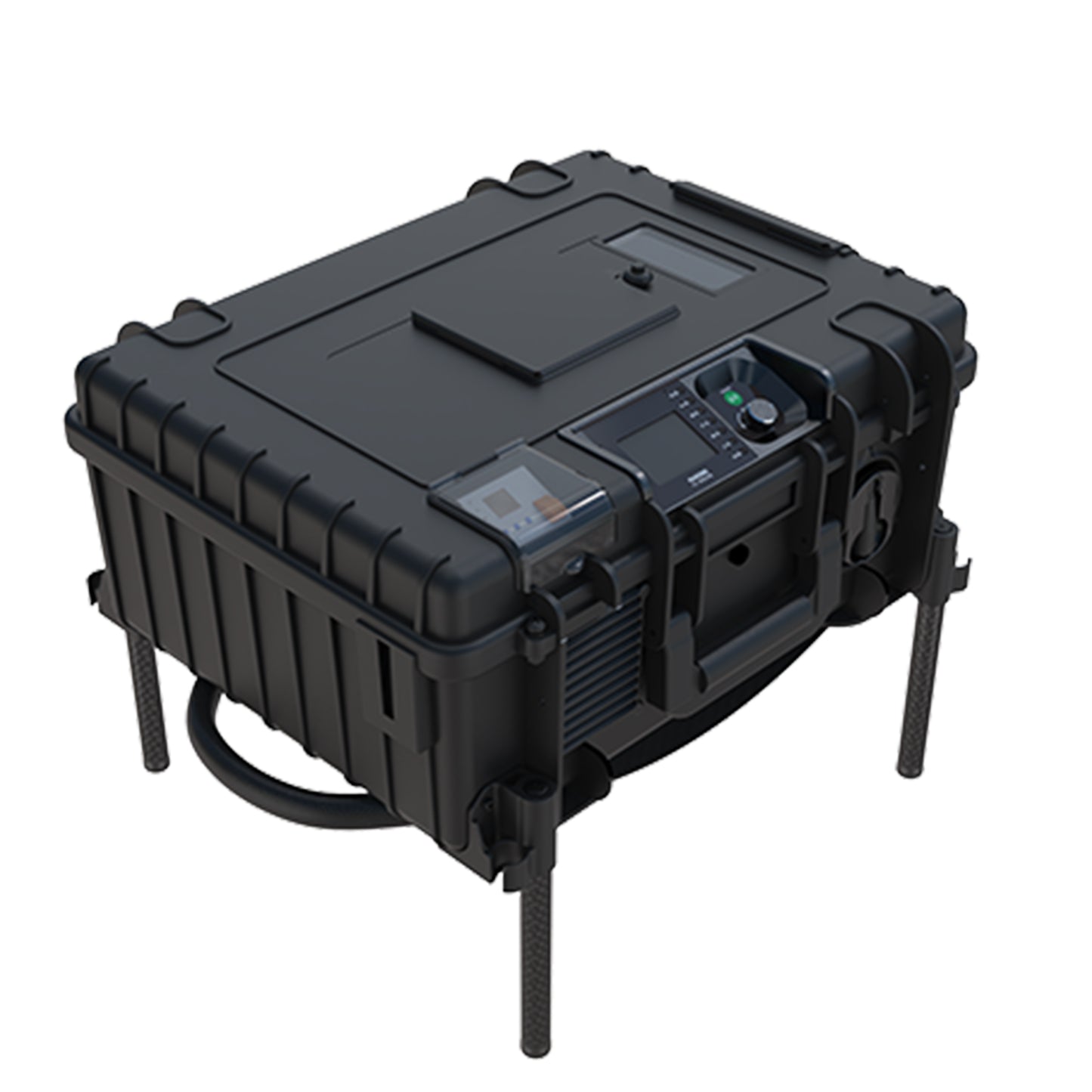

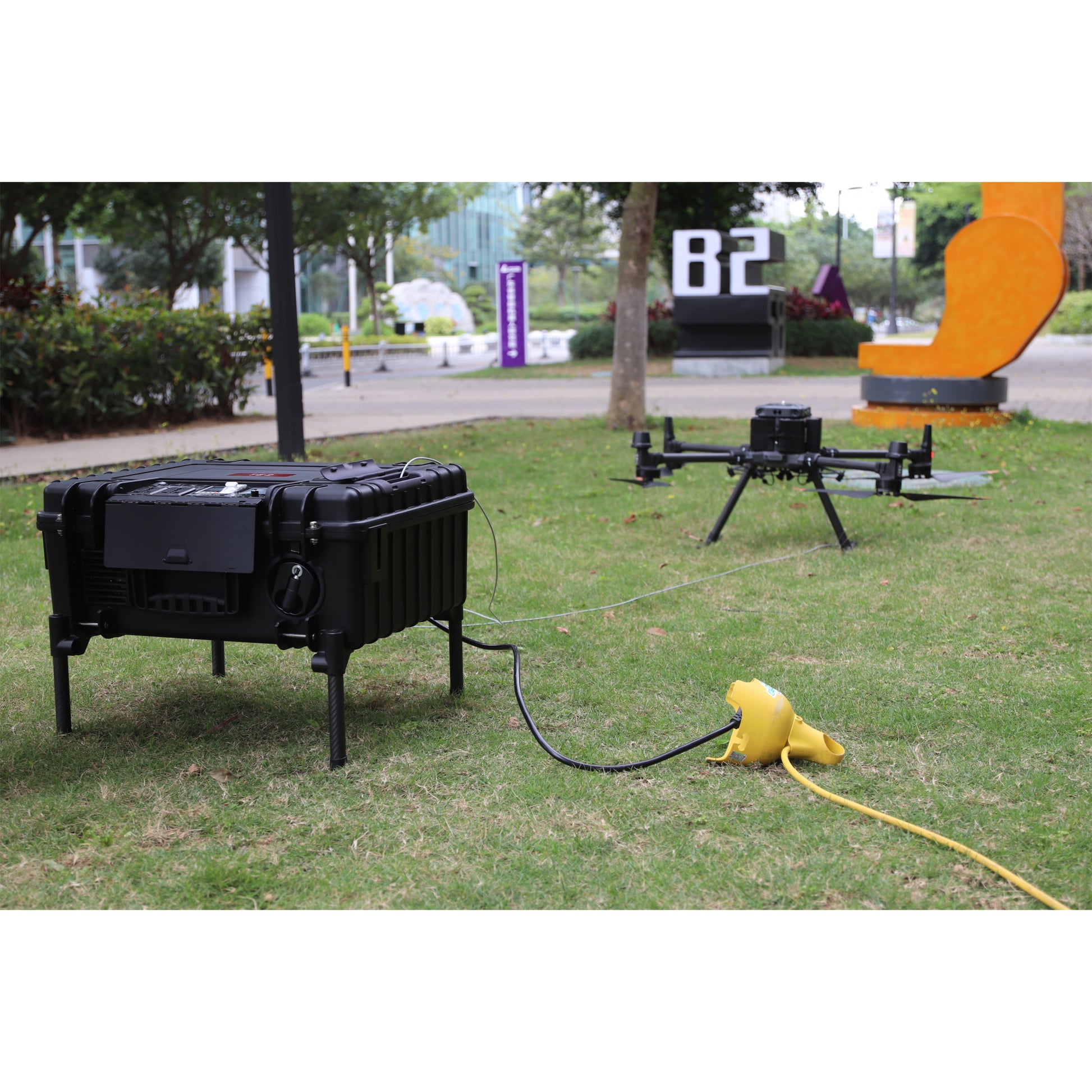

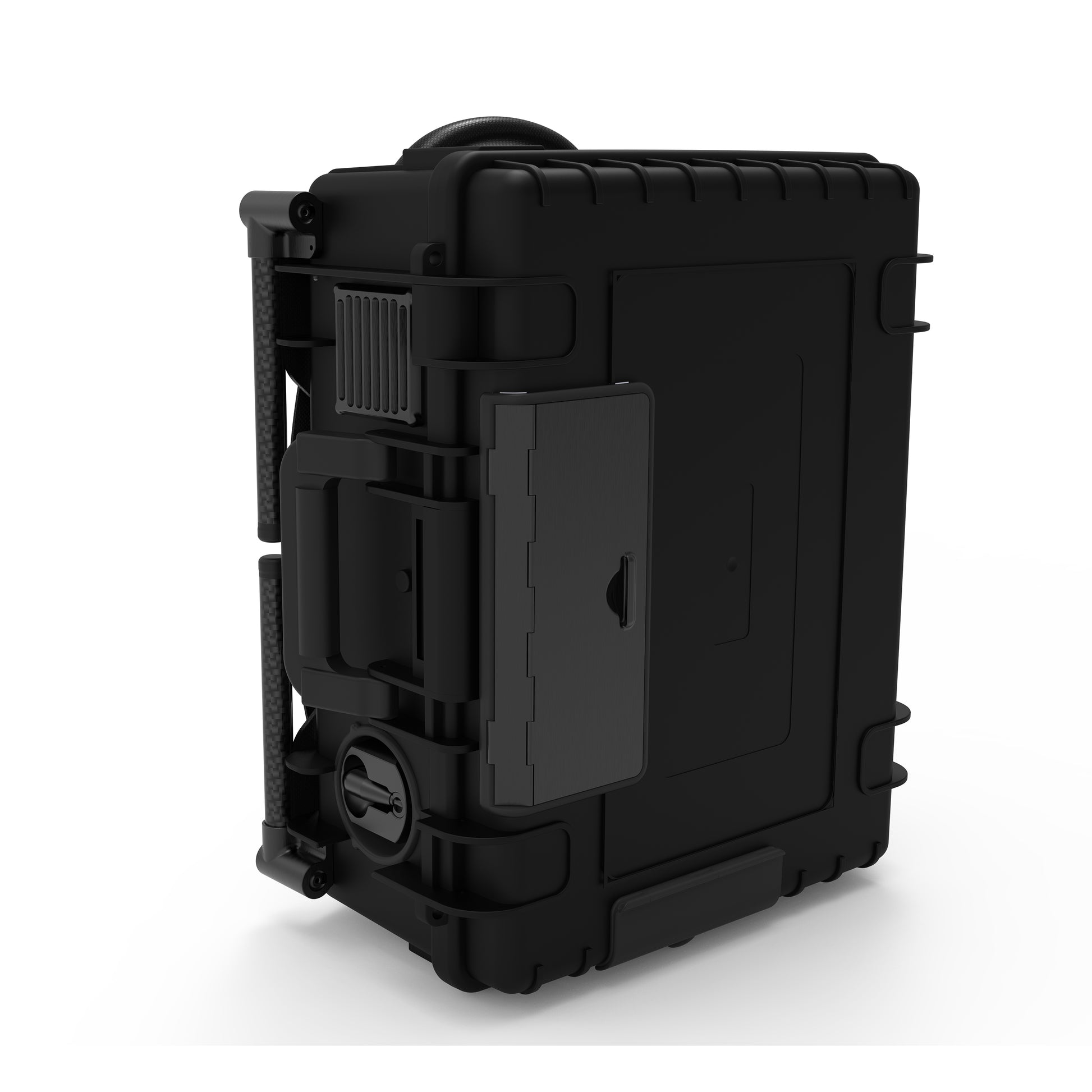

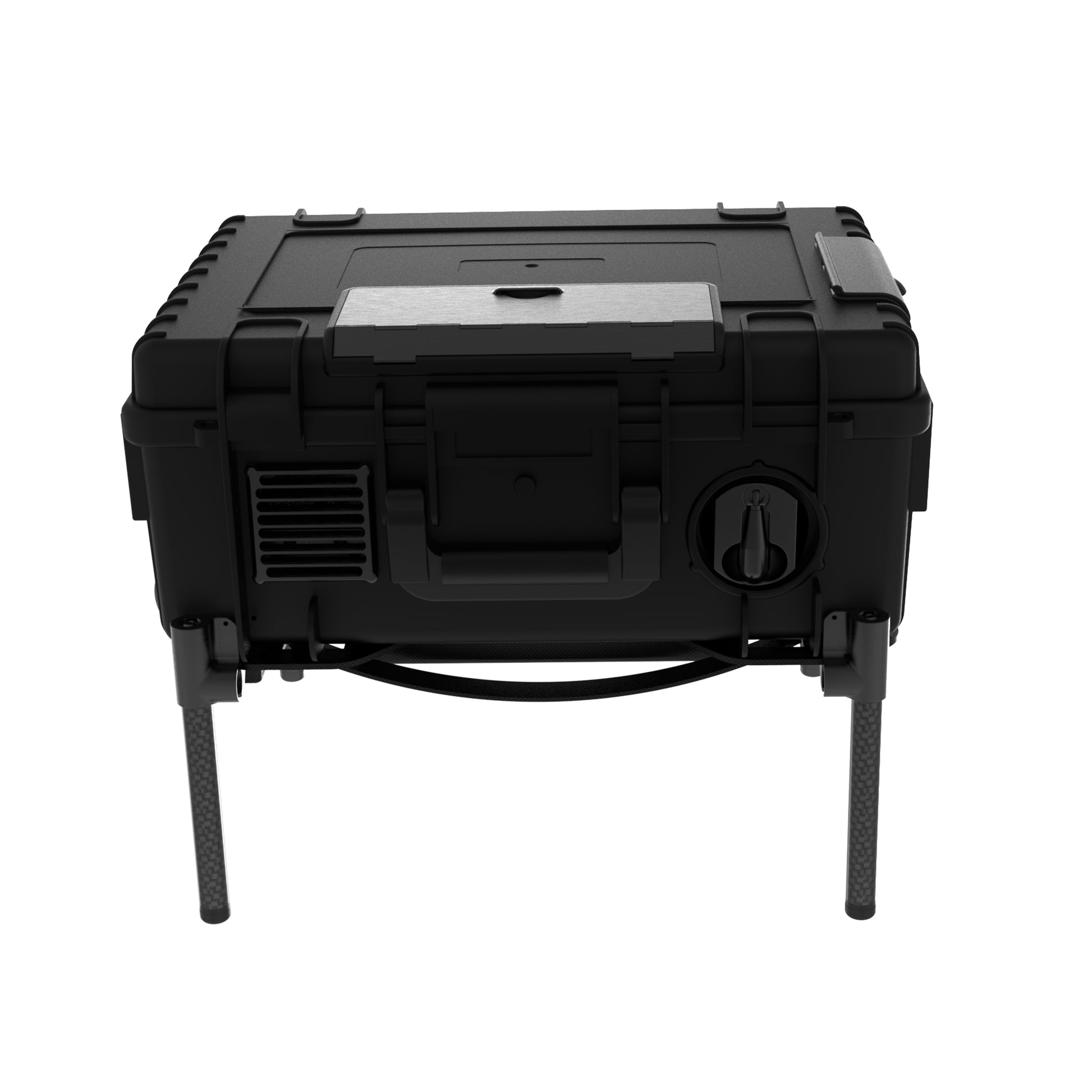

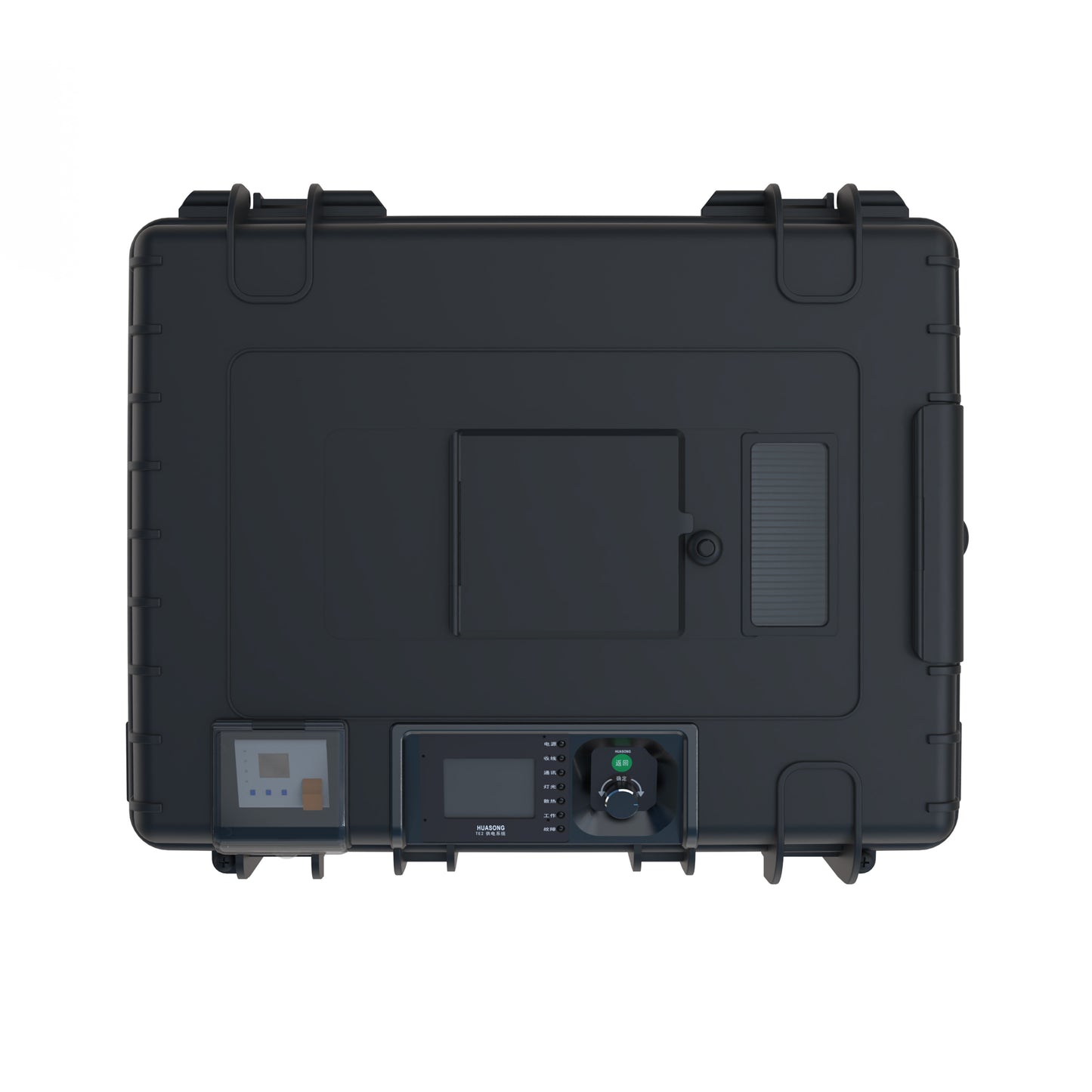

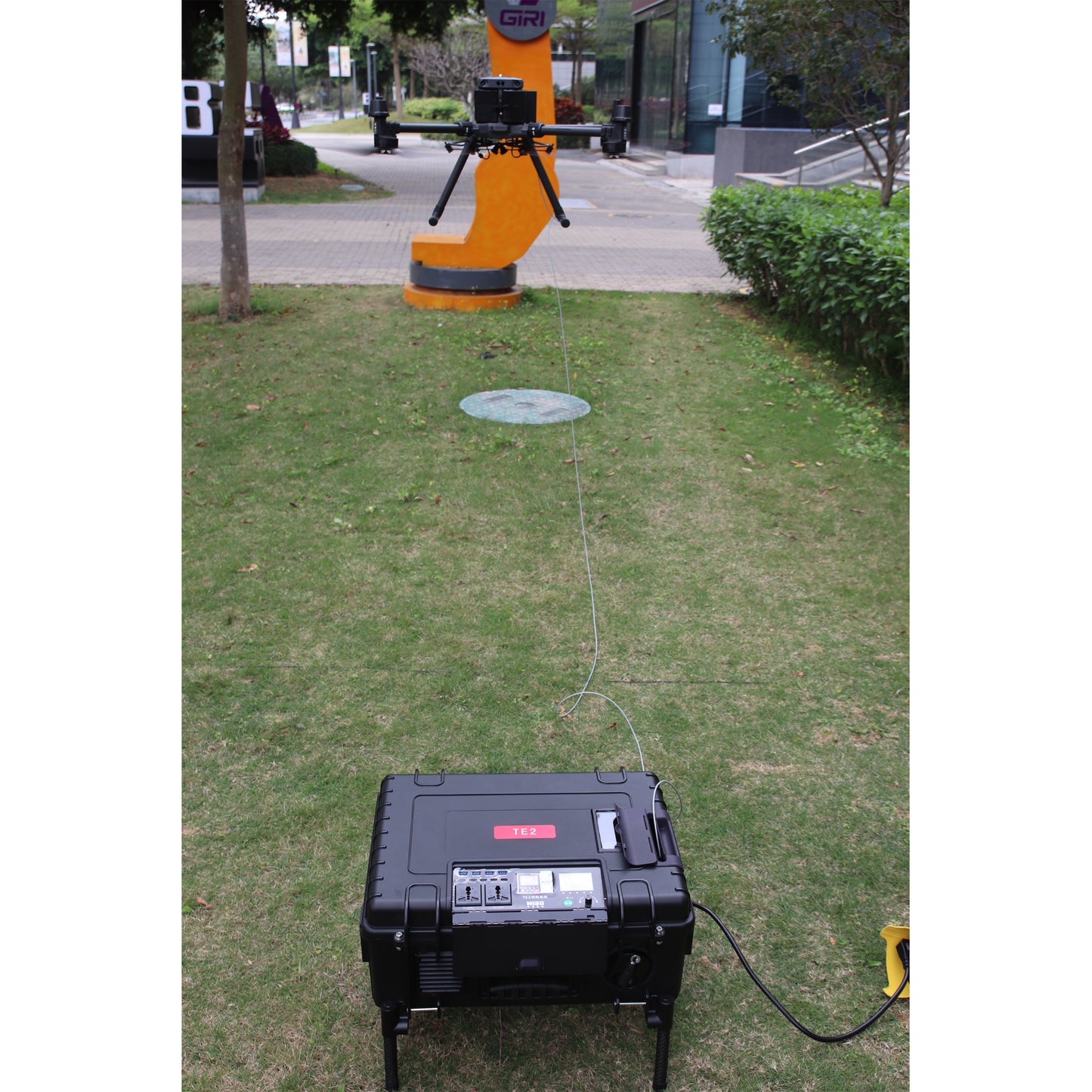

Tether box ground end dimensions: 520mm*435mm*250mm
Tether box weight: 15kg
Tether box rated power: 3KW
Cable length: 110 meters
Operating temperature: -20℃ - +50℃

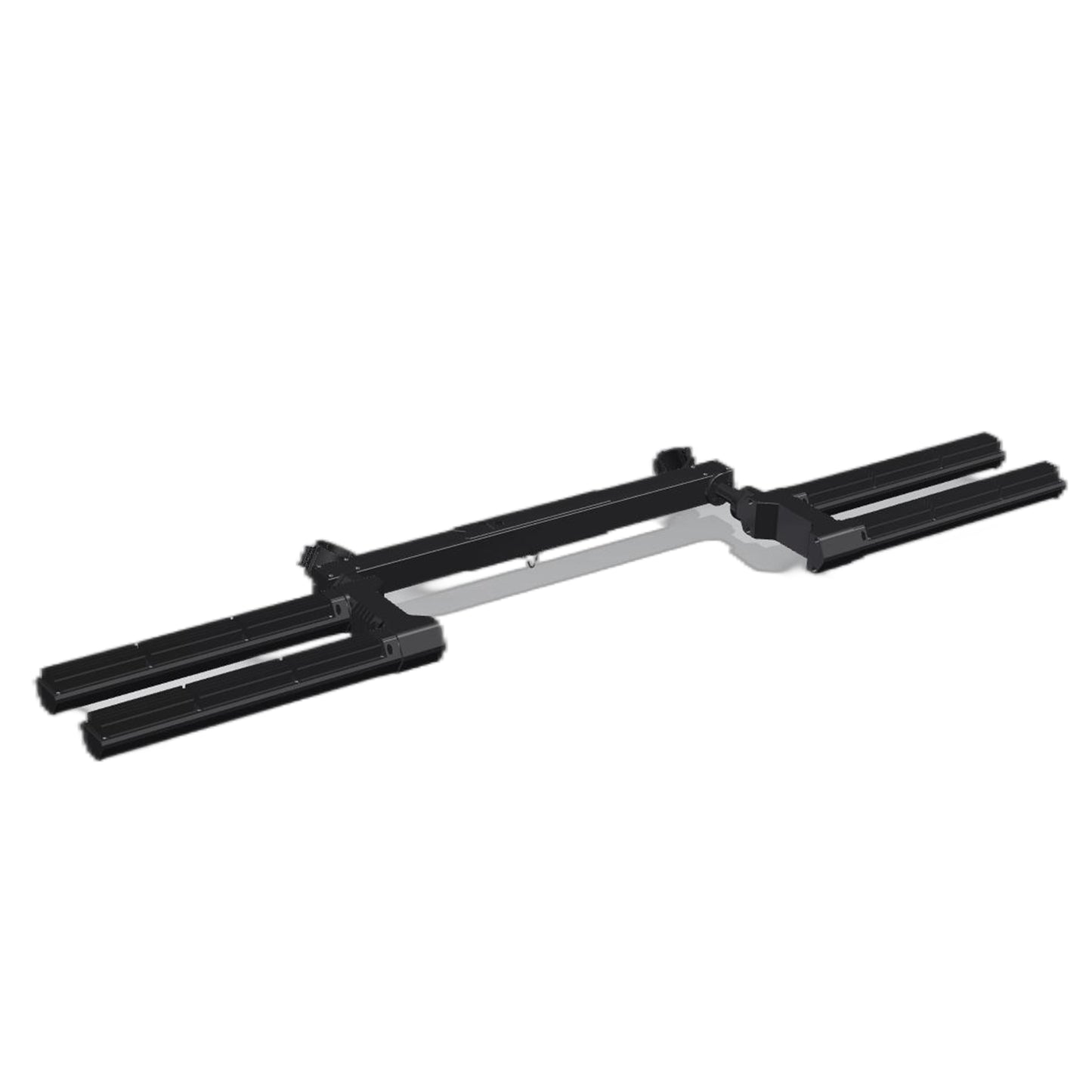

Light dimensions: 390×170×32mm
Weight: 1200g
Light type: White light (6500K)
Total power: 800W/80000LM
Illumination angle: White light 60°
Installation method: Bottom quick release, light installation requires no modification to the aircraft
Operating temperature: -20℃ - +50℃
Function

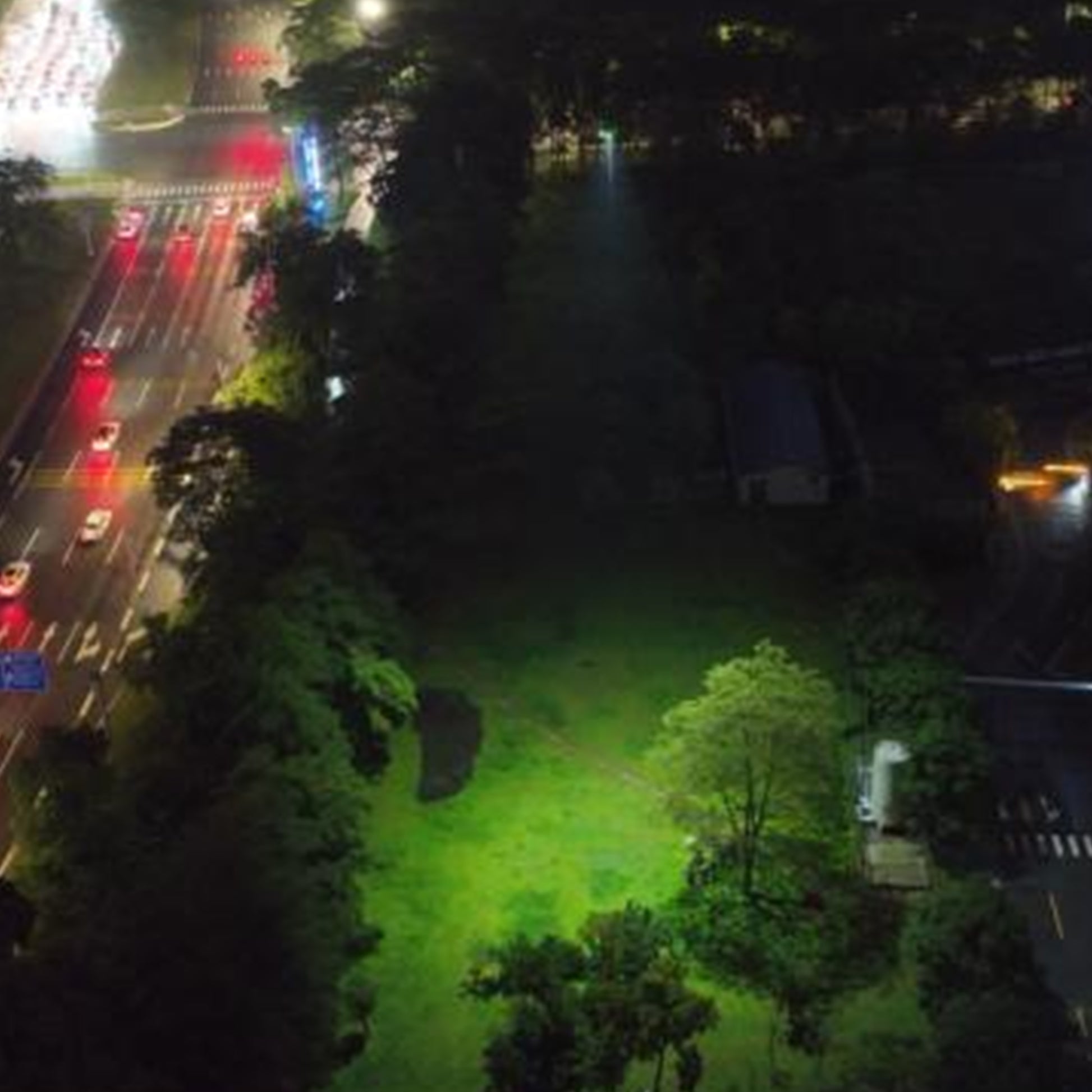

1. Equipped with floodlight combination, 800W lighting power;
2. Over 80,000 lumens;
3. Over 30,000 square meters of illumination area;
Compatible Models
DJI M350/300
