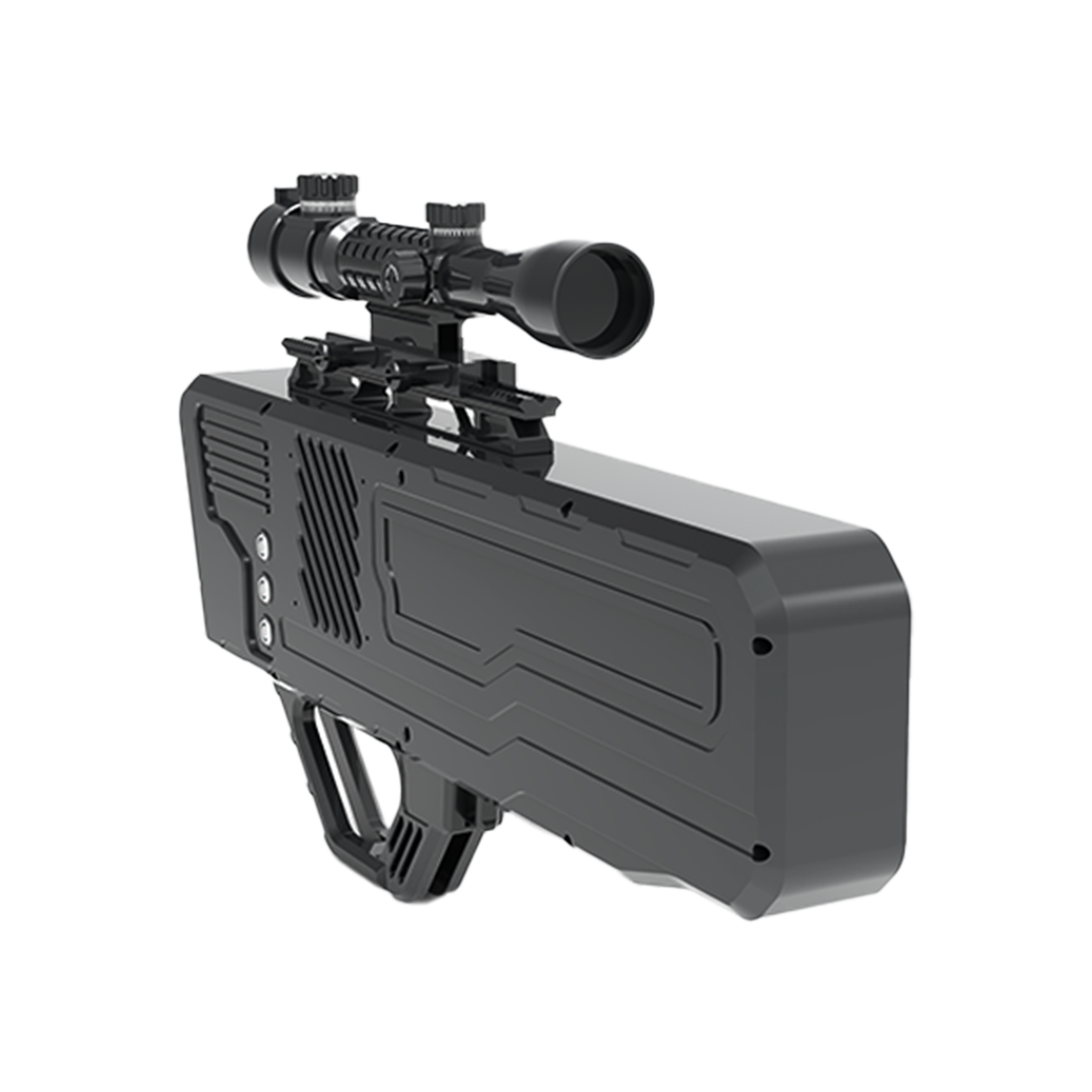

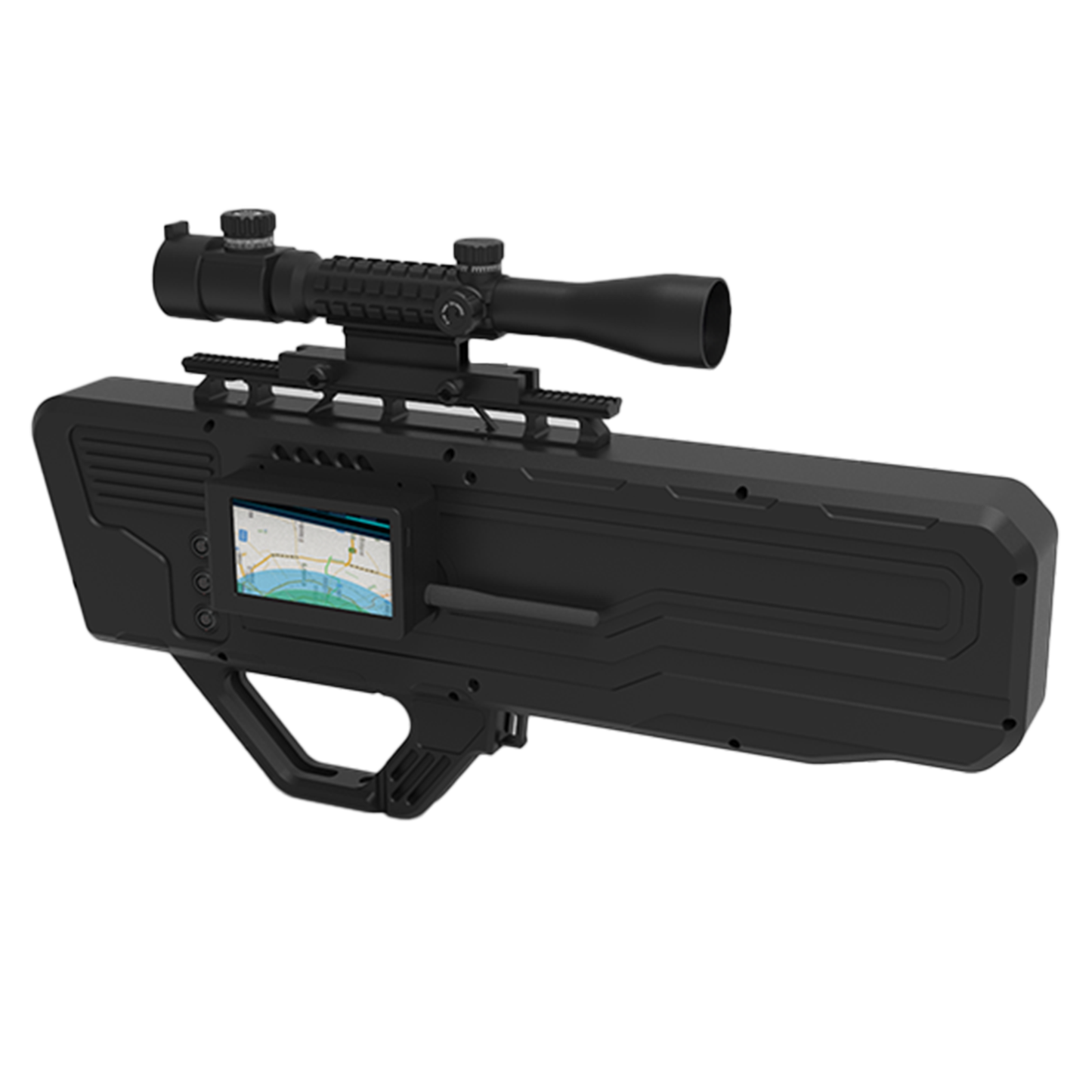

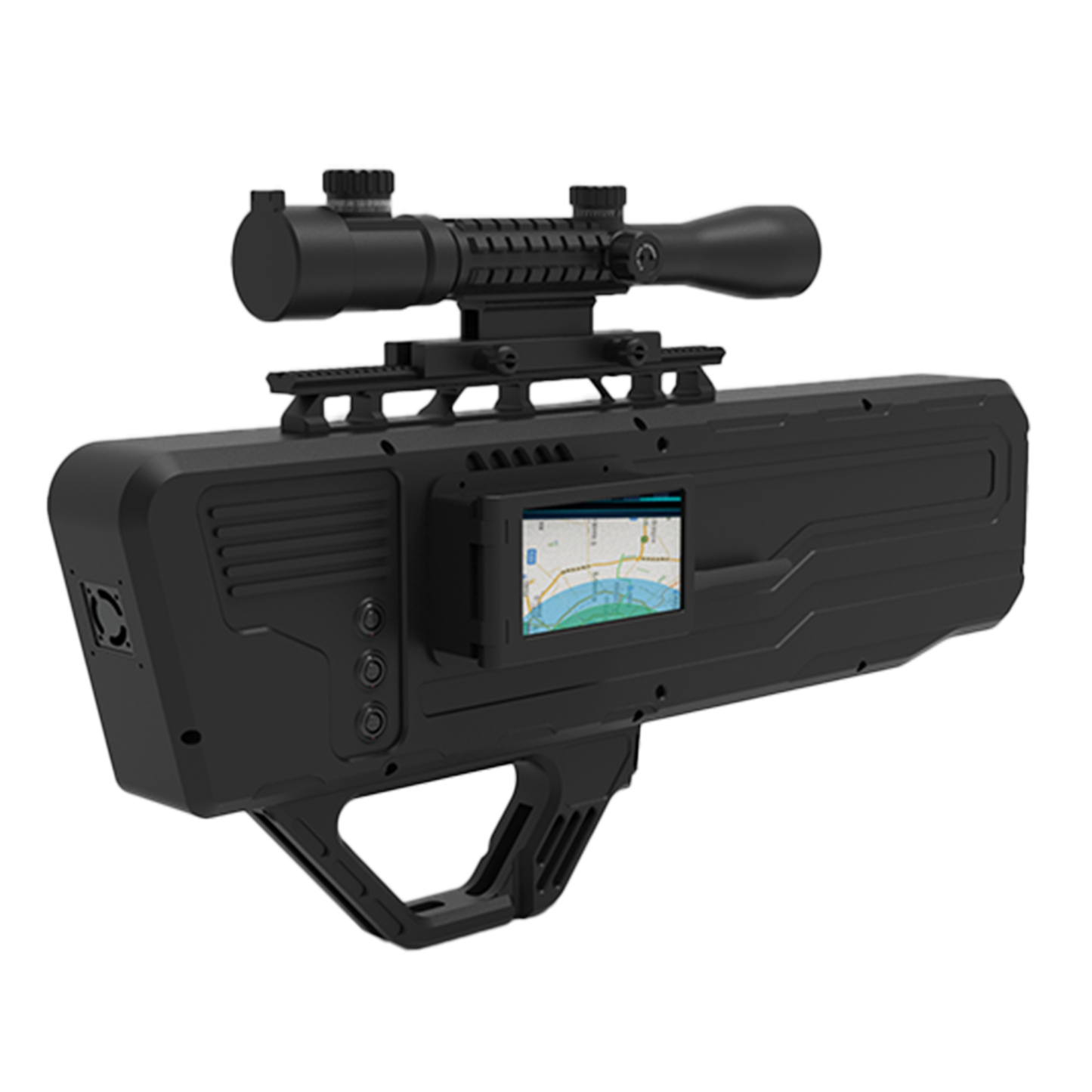

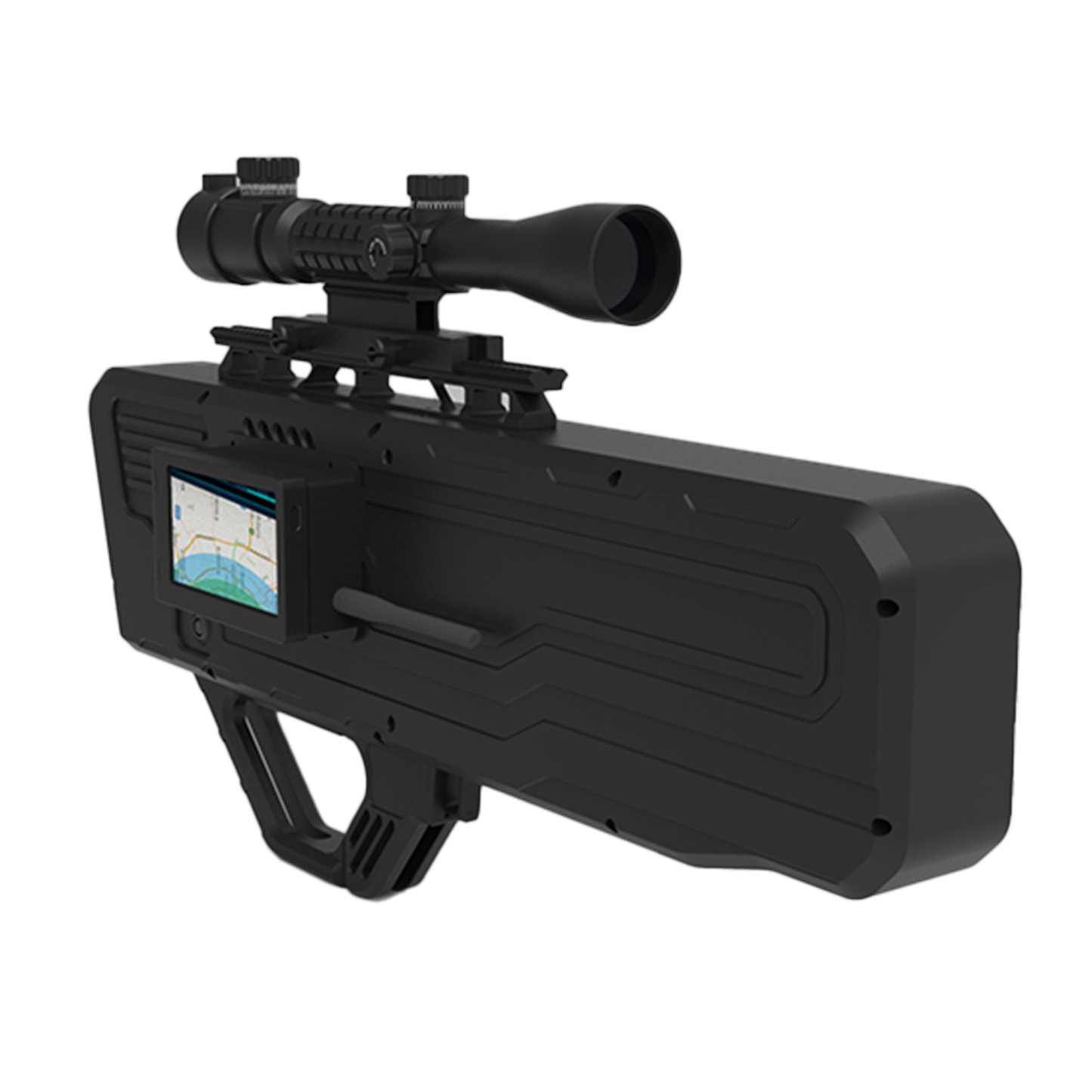

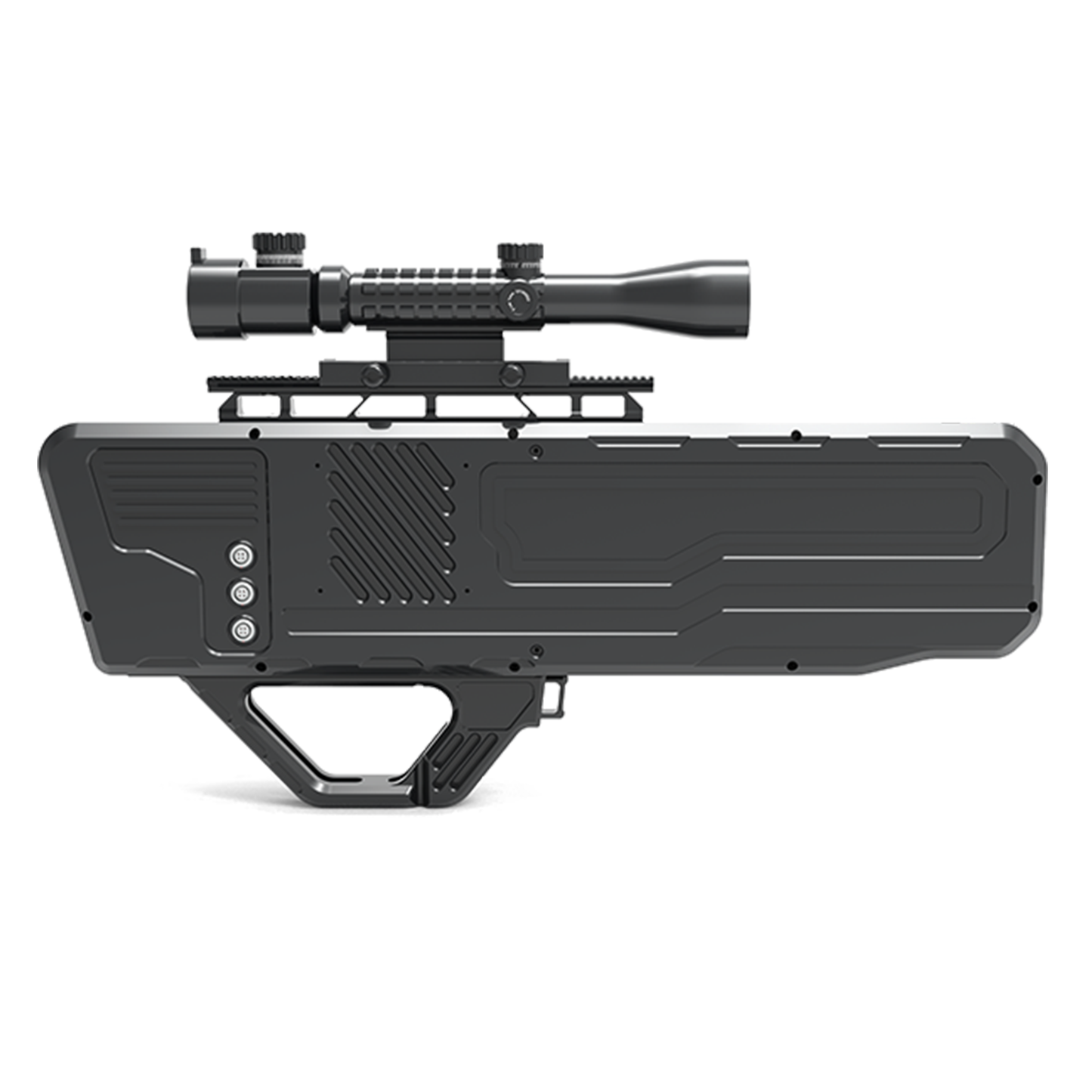

DB-GR100 V3/V2 Drone jammer
DB-GR100 V3/V2 Drone jammer
Regular price
$0.00 USD
Regular price
$3,000.00 USD
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The countermeasure device emits high-intensity electromagnetic waves to interfere with the flight control and positioning systems of small and medium-sized drones, blocking their communication signals and rendering them ineffective. Operators can use this to
cause the controlled drones to lose control, return to home, be driven away, or forced to land. The device also has detection and positioning capabilities, enabling it to track the location of drones.
Collapsible content
Parameter
Product dimensions: 583mm*259mm*90mm
Product weight: 4.5Kg
Number of frequency bands: Standard 4 frequency bands
Optional frequency bands: 400MHz/900MHz/1.2G/1.5G/2.4G/5.8G
RF power: 20W per frequency band
Operating temperature: -20℃～60℃
Screen type: 2.4-inch touch full-color display
Operating modes: Frequency band selection/Drive-away mode/Forced landing mode/GPS mode
Self-check for faults: Power detection/Channel self-check/Temperature self-check
Effective range: 1500m
External interfaces: UART/DC OUT/DC IN
Battery parameters: 25.9V lithium polymer battery
Protection rating: IP55
Screen functions: Touch selection/Battery level display/Alarm information/Mode display/Drone model and direction
Operating time: Continuous for 1.5 hours
Function
1. Integrates the host and the power supply of the interception system into one unit, with a high degree of integration
2. Blocks the frequency points of drones, the interference frequency bands can cover common frequency-hopping and spread-spectrum drones, with strong interference capability and high output power
3. Effective control distance ranges from 0 to 1500 meters
4. Identifies the drone model and direction without emitting electromagnetic waves.
