LP12 Searchlight & Broadcasting System Payload for DJI Matrice 30 Drone
LP12 Searchlight & Broadcasting System Payload for DJI Matrice 30 Drone
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

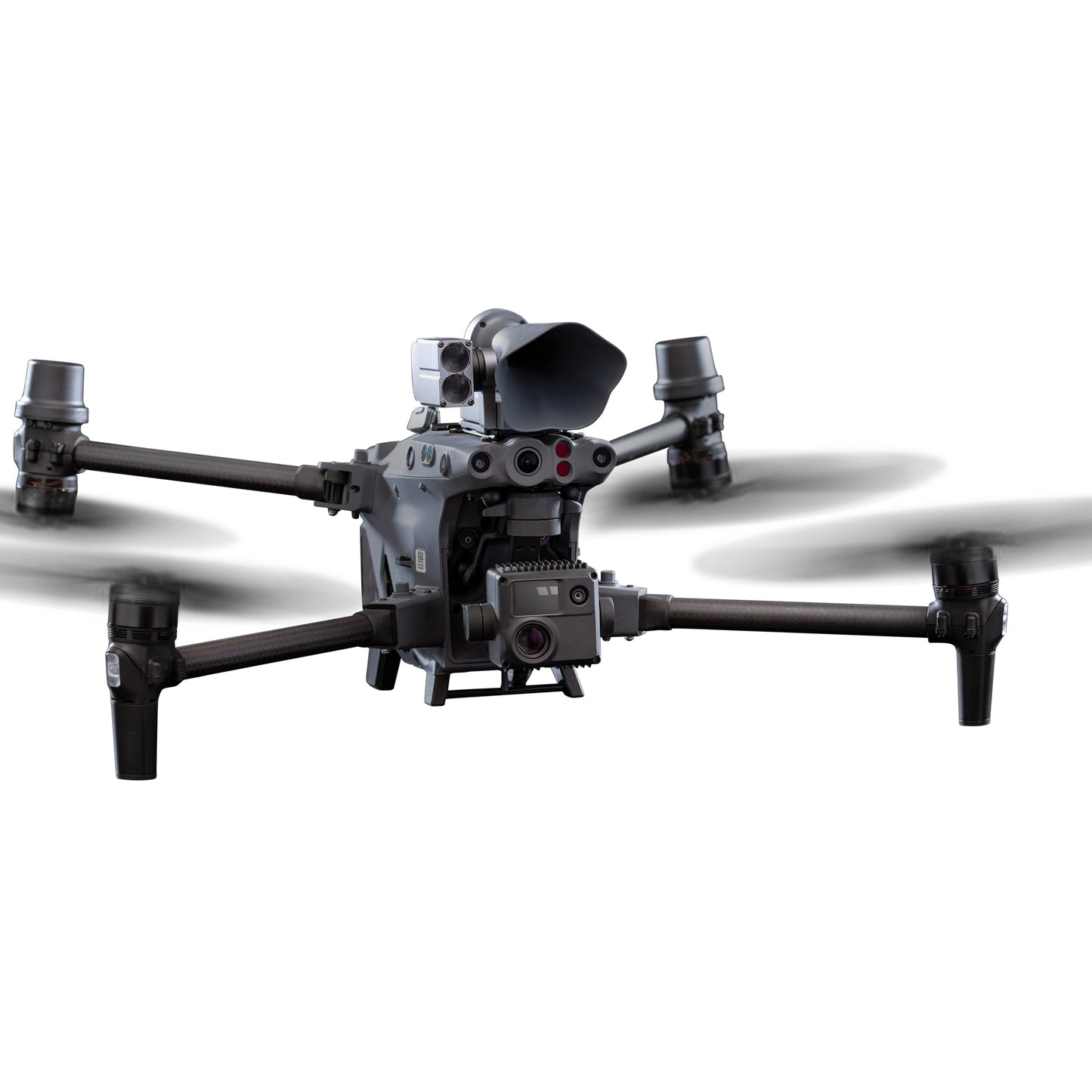

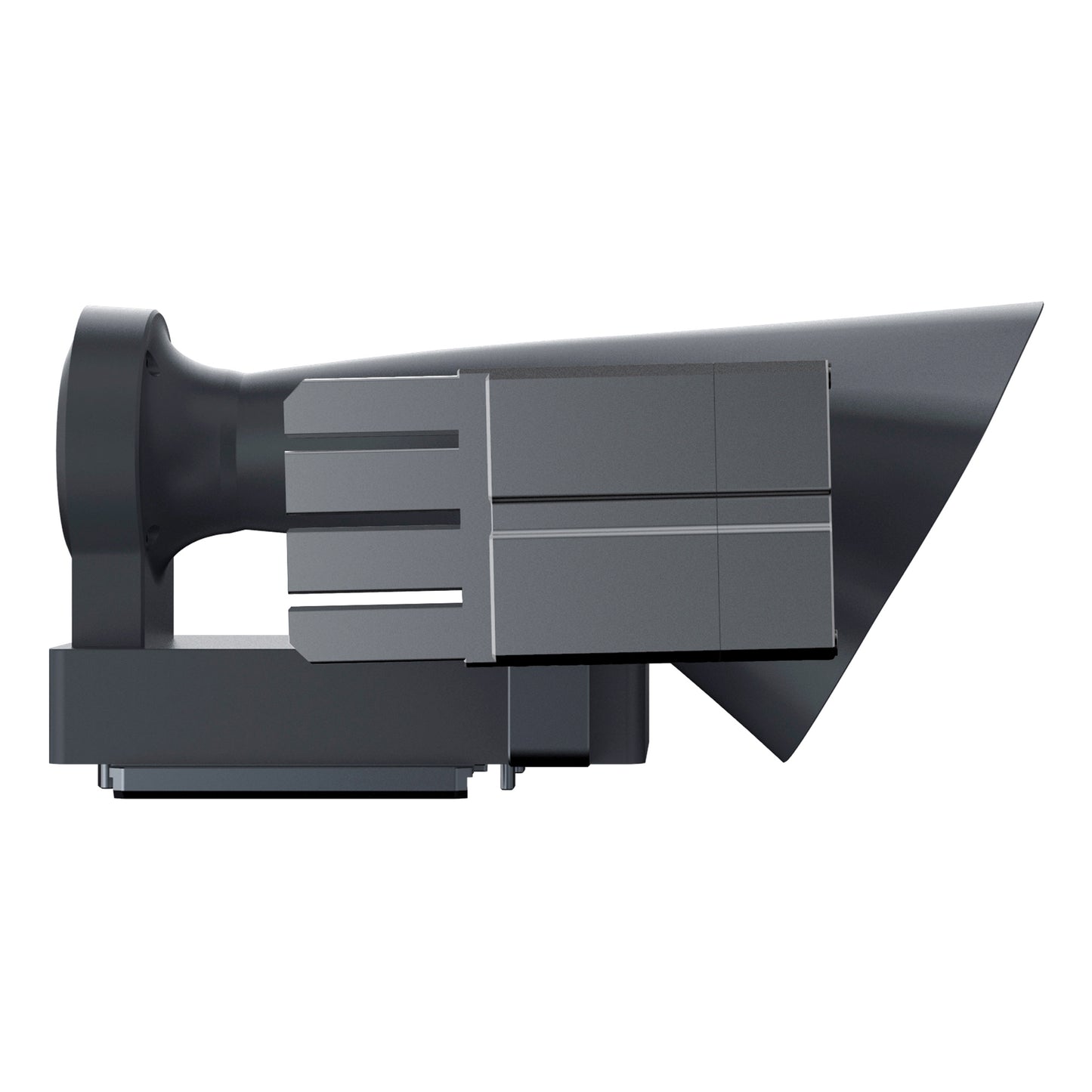

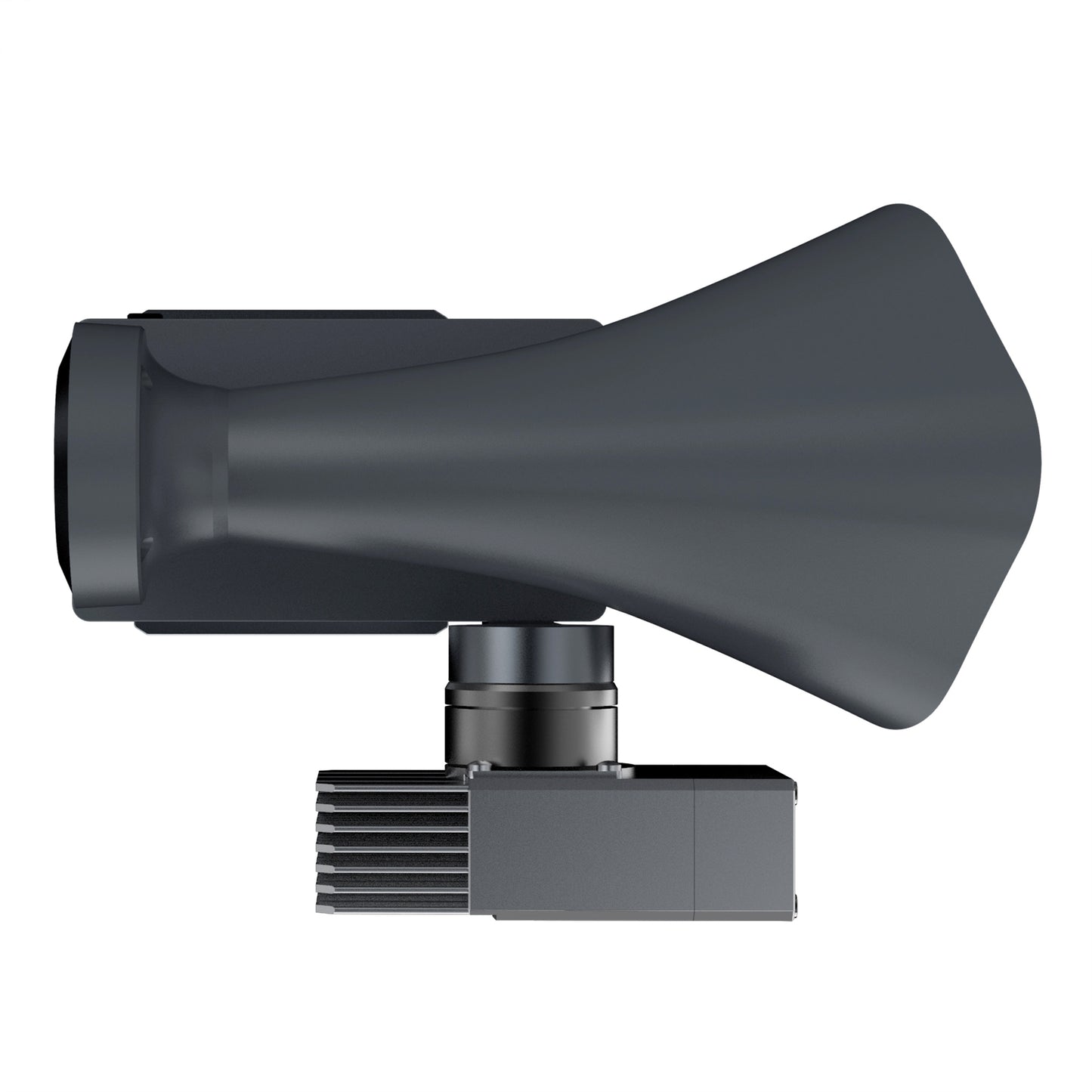

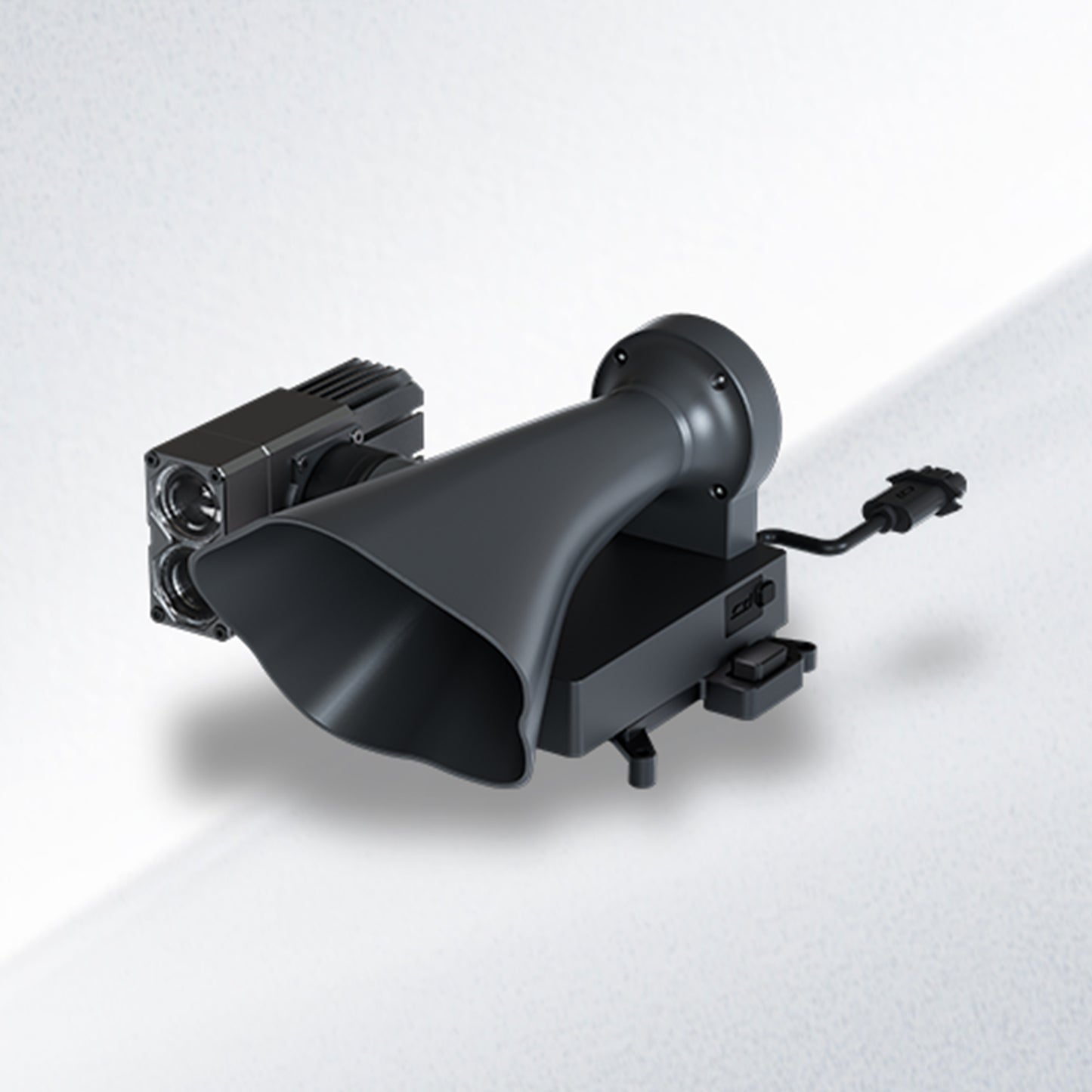

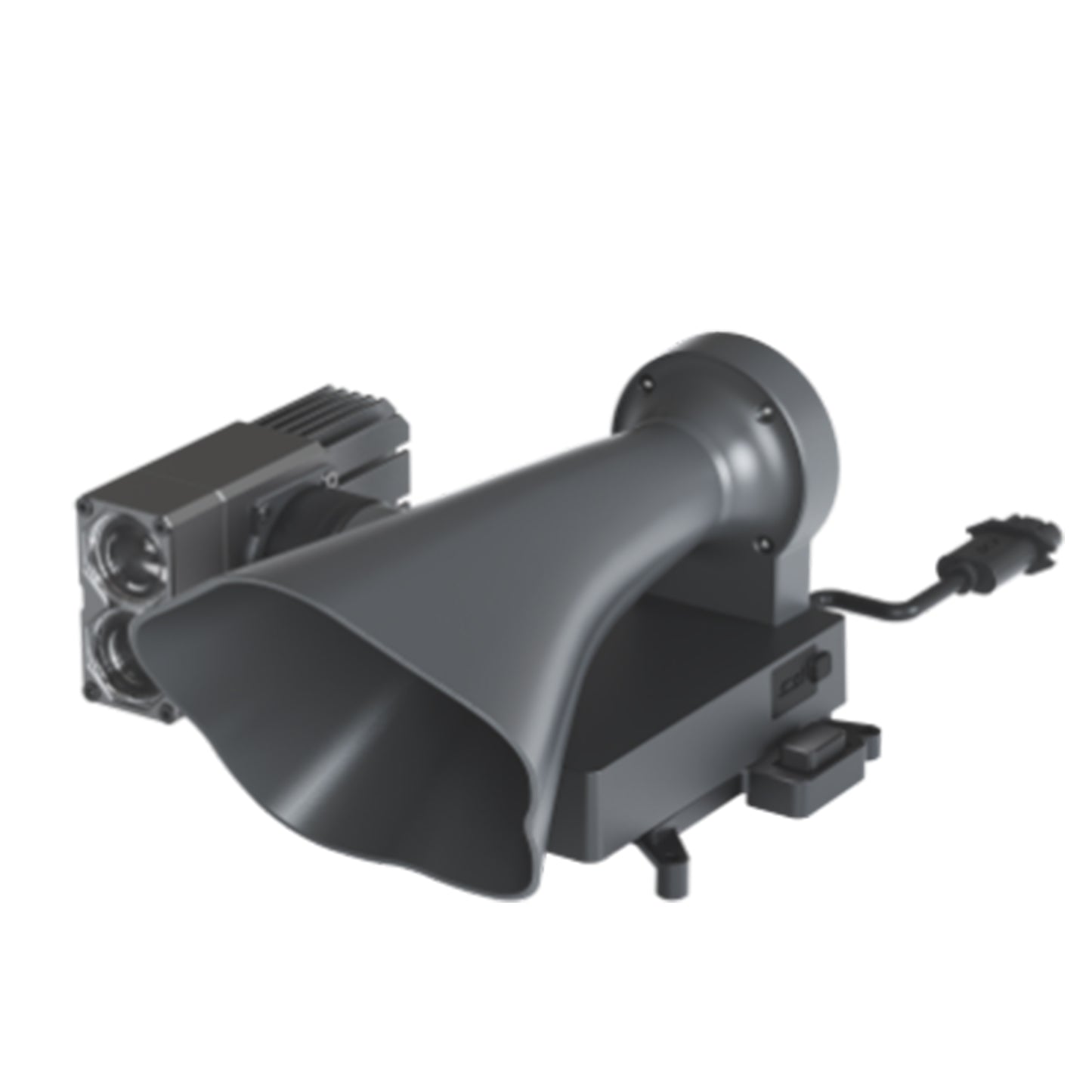

CZI LP12 searchlight & broadcasting system is a two-in-one payload specially designed for the DJI M30.The spotlight and loudspeaker combo is designed to be lightweight at only 288 grams, with a spotlight range of 100 meters and a broadcasting distance of 200 meters. It meets the needs for security patrols and forest search and rescue missions.
Collapsible content
Parameter
Electrical Interface: DJI PSDK
Weight: 288g (without airport version quick-release bracket) / 306g (with airport version quick-release bracket)
Dimensions: 156*109*84 mm
Spotlight Power: Normal mode 30W / Strobe mode 40W
Speaker Power: 15W
Supply Voltage: 24V
Luminous Flux: 2122±3% lm
Spotlight FOV: 13°
Spot Diameter: 11.4m (distance: 50m) / 22.8m (distance: 100m) / 29.6m (distance: 130m) / 34m (distance: 150m)
Illumination Area: 102㎡ (distance: 50m) / 407㎡ (distance: 100m) / 688㎡ (distance: 130m) / 917㎡ (distance: 150m)
Center Illuminance: 25Lux (distance: 50m); 6.3Lux (distance: 100m) / 2.5Lux (distance: 130m) / 1.7Lux (distance: 150m)
Gimbal Controllable Rotation Range: (Synchronized with camera) Tilt -120° to +45°
Peak Sound Pressure: 122dB
Effective Broadcast Distance: 200m @ 76dB / 350m @ 69dB
Announcement Methods: Live announcement / Recorded upload / Audio file playback / TTS (regional dialects, multiple languages) / Background sound
Audio Formats: mp3/wav/m4a/flac/aac
App Support: DJI Pilot/DJI Pilot2
Operating Temperature: -20°C to +50°C
Function
1. Integrated loudhailer and spotlight
2. Ultra-high sound pressure of 122dB, effective illumination distance of 100 meters, effective loudhailer distance of 200 meters
3. Perfectly compatible with M30
Compatible Models
DJI M30
