FT4-P UAV Dual-Channel Payload Dropper and Warning Light Combo Product
FT4-P UAV Dual-Channel Payload Dropper and Warning Light Combo Product
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

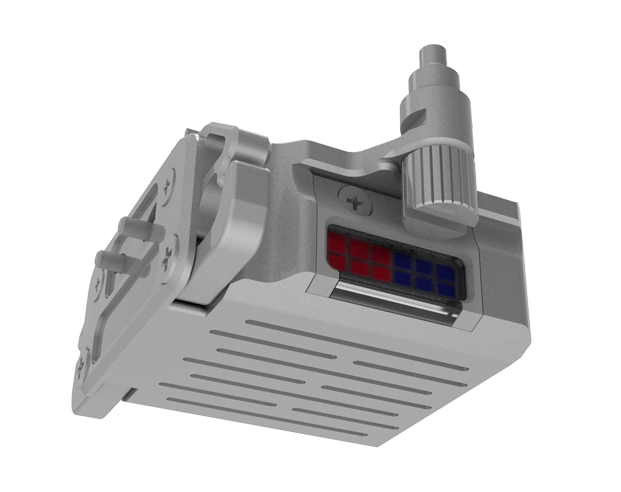

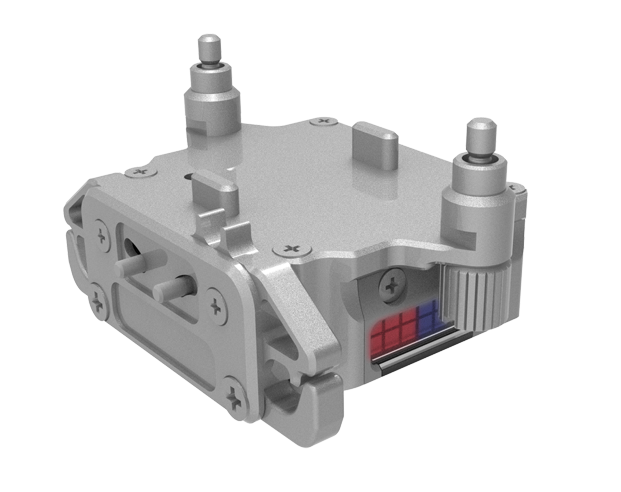

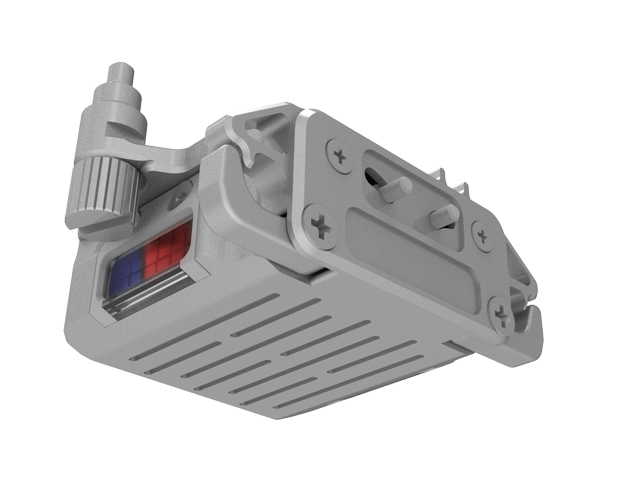

The FT4-P multi-functional load is suitable for the DJI Matrice 4 drone. It is developed based on the PSDK and seamlessly integrated with the Pilot2 software control. It features a high-performance digital servo motor that can drive a maximum of 2 kg hook release per channel. The device is designed to minimize its size without modifying the drone's structure. It has a manual hook-up button on the exterior for real-time manual loading. It also comes with a warning light function, featuring five color combinations that can flash alternately or synchronously. This compact device is ideal for various material delivery and emergency rescue scenarios.
Collapsible content
Parameter
**Product Model:** FT4-P
**Product Dimensions:** 56.5mm × 39mm × 26mm
**Product Weight:** 50g
**Interface Type:** TYPE-C
**Control Method:** PSDK
**System Power:** Up to approximately 3W
**Operating Temperature:** -20℃ to 60℃
**Number of Channels:** 2
**Control Range:** Consistent with the UAV communication range
**Status Feedback:** Real-time status feedback for each channel
**Control Method:** Independent channel control for deployment, selectable deployment number
**Load Capacity:** 2kg per channel, 4kg for dual channels (recommended load within 500g)
**Installation Method:** Quick installation on the drone's belly
**Working Attributes:** Built-in dual-channel strobe warning lights
**Flash Mode:** Five color combinations with alternating or synchronized flashing
**Number of LEDs:** 16
**Applicable Models:** DJI M4T/M4E
Function
1. Compatible with the Eport-lite interface of DJI M4T/M4E, it can be used simultaneously with DJI searchlight and loudspeaker payloads.
2. Compatible with the Pilot software, the UAV automatically recognizes the dropper, ready to use upon startup.
3. Independent channel control for deployment, with the ability to select any deployment number.
Compatible Models
DJI M4T/E
